collect compare
0857931013
Part number：
0857931013
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
Molex
describe：

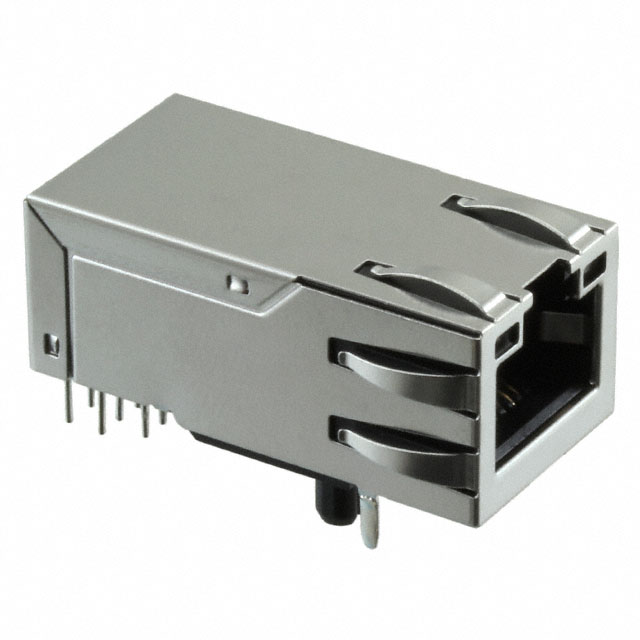

CONN JACK 1PORT 1000 BASE-T PCB
package：
Tray
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1793
minimum : 0
quantity
unit price
price
1
12.34
12.34
10
10.94
109.4
25
10.52
263
40
10.1
404
80
9.54
763.2
396
8.7
3445.2
792
7.69
6090.48
1188
7.46
8862.48
specifications
  • Features
    Board Lock
  • Connector Type
    RJ45
  • Contact Finish
    Gold
  • Mounting Type
    Through Hole
  • Shielding
    Shielded, EMI Finger
  • Orientation
    90° Angle (Right)
  • Operating Temperature
    0°C ~ 70°C
  • Applications
    10/100/1000 Base-T, AutoMDIX
  • Termination
    Solder
  • LED Color
    Yellow, Green - Yellow, Green
  • Number of Cores per Jack
    8
  • Height Above Board
    0.546" (13.87mm)
  • Tab Direction
    Up
  • Contact Finish Thickness
    30.0µin (0.76µm)
  • Shield Material
    Stainless Steel
  • Contact Material
    Copper Alloy
  • Housing Material
    Polybutylene Terephthalate (PBT)
  • Number of Ports
    1
  • Number of Rows
    1
  • 13670023222
