880-70-027-10-001101
Part number：
880-70-027-10-001101
CLASSIFICATION：
Connectors, Interconnects
manufacturer：
Preci-Dip
describe：

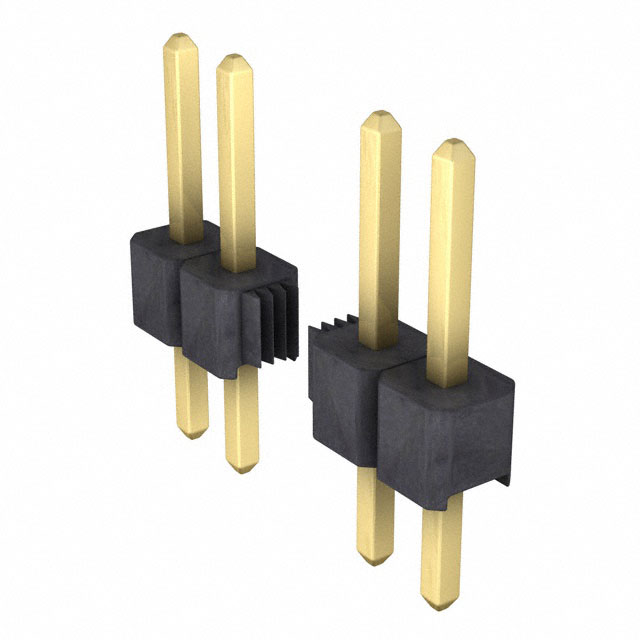

CONN HEADER VERT 27POS 2MM
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
590
1.2
708
specifications
  • Connector Type
    Header
  • Voltage Rating
    150VDC
  • Current Rating (Amps)
    1A
  • Mounting Type
    Through Hole
  • Number of Positions
    27
  • Number of Rows
    1
  • Style
    Board to Board
  • Operating Temperature
    -55°C ~ 125°C
  • Contact Type
    Male Pin
  • Fastening Type
    Push-Pull
  • Number of Positions Loaded
    All
  • Termination
    Solder
  • Material Flammability Rating
    UL94 V-0
  • Contact Material
    Brass
  • Insulation Color
    Black
  • Pitch - Mating
    0.079" (2.00mm)
  • Contact Finish - Mating
    Gold
  • Contact Finish Thickness - Mating
    Flash
  • Contact Finish - Post
    Gold
  • Contact Finish Thickness - Post
    Flash
  • Contact Shape
    Square
  • Contact Length - Post
    0.110" (2.79mm)
  • Insulation Height
    0.079" (2.00mm)
  • Shrouding
    Unshrouded
  • Overall Contact Length
    0.346" (8.80mm)
  • Insulation Material
    Polyamide (PA), Nylon, Glass Filled
  • Contact Length - Mating
    0.157" (4.00mm)
